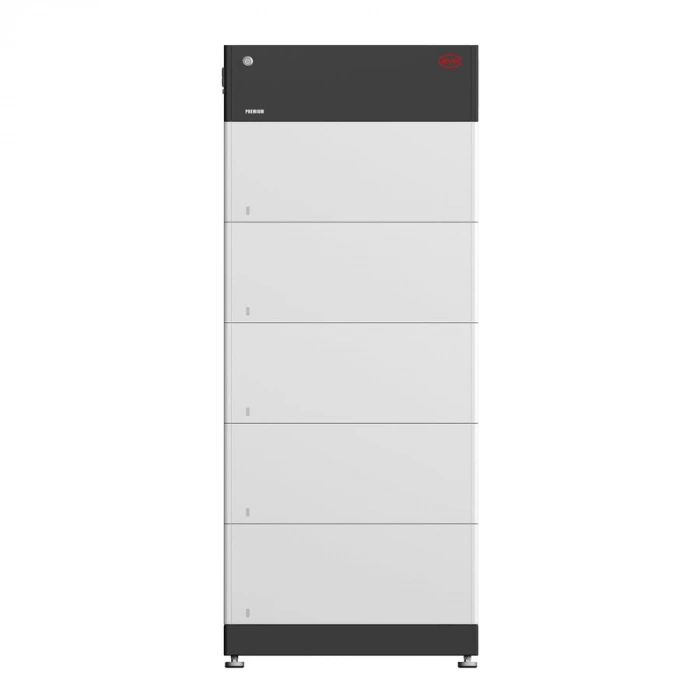

BYD 12.8 kWh HVS Serisi Batterybox Premium Akü

BYD Battery-Box Premium HVS 12.8

• Battery Module: HVS (2.56 kWh, 102.4 V, 38 kg)
• Number of Modules: 5
• Usable Energy [1]: 12.8 kWh
• Max Output Current [2]: 25 A
• Peak Output Current [2]: 50 A, 5 s
• Nominal Voltage: 512 V
• Operating Voltage: 400~600 V
• Dimensions (H/W/D): 1411x585x298 mm
• Weight: 205 kg

One Battery-Box Premium HVS is composed of 2 to 5 HVS battery modules that are connected in series to achieve a usable capacity of 5.1 to 12.8 kWh. Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVS allows a maximum capacity of 38.4 kWh.Ability to scale by adding HVS modules or parallel HVS stacks later.
